1. Medicalholodeck
Tutorials
1. Activate licenses 2. Use Your Hands To Navigate in VR 3. Capture Screenshots and Videos 4. How to add your device to Link 5. Uploading data from your computer to your headset 6. Accessing files via Link
1.1 Main control pad
1.1.1 Library 1.1.2 Jump 1.1.3 4D Record 1.1.4 TeamXR 1.1.5 Remote Render 1.1.6 Settings 1.1.7 Reset workspace 1.1.8 Undo 1.1.9 Redo 1.1.10 Exit 1.1.11 Capture a movie 1.1.12 Take a photo 1.1.13 Handle
1.2 Object pad
1.2.1 Cutter 1.2.2 Laser 1.2.3 Masking 1.2.4 Measure area 1.2.5 Measure distance 1.2.6 Delete 1.2.7 Scale 1.2.8 Move 1.2.9 Move backward 1.2.10 Frame rate 1.2.11 Remove dataset 1.2.12 Light on/off 1.2.13 Measure angle 1.2.14 Draw 1.2.15 Marker 1.2.16 Rotate horizontally 1.2.17 Rotate vertically
1.3 Library panel
1.3.1 Saved scenes 1.3.2 Medical Imaging 1.3.3 RecordXR 1.3.4 Dissection Master 1.3.5 Anatomy Master
1.4 Object marker
1.4.1 Center 1.4.2 Lock 1.4.3 Delete 1.4.4 Groups 1.4.5 Cuts visibility
1.5 Lighting
1.5.1 Light 1.5.2 Light Marker
1.6 Controllers
1.6.1 Left controller 1.6.2 Right controller
1.7 Settings
1.7.1 Settings 1.7.2 Licenses 1.7.3 PACS 1.7.4 Services
1.8 Quality settings
1.8.1 Medical imaging settings 1.8.2 Low framerate screen 1.8.3 About 3D DICOM files 1.8.4 Processing and texturing 1.8.5 Challenges with large datasets in VR 1.8.6 Adaptive detail rendering
1.9 Link
1.9.1 Device bar 1.9.2 License management 1.9.3 Datasets 1.9.4 RecordXR 1.9.5 Presets 1.9.6 Transfer Functions 1.9.7 Upload
2. Medical Imaging
Tutorials
1. Import and display data 2. Importing data on standalone devices 3. Edit DICOM 4. Measure, mark and draw on DICOM
2.1 User interface
2.1.1 Import 2.1.2 Save 2.1.3 Export 2.1.4 Load data 2.1.5 Delete data
2.2 Medical Imaging panel
2.2.1 Option preset 2.2.2 Transfer function 2.2.3 Tissue filter 2.2.4 Transfer function preset 2.2.5 AI Segmentation 2.2.6 Mesh generator 2.2.7 Multiplanar 2.2.8 Edge filter 2.2.9 Quality settings 2.2.10 Handle
3. Medicalholodeck AI
3.1 Running AI segmentation
3.2 Segmentation control panel
3.2.1 Structure 3.2.2 Options
3.3 Running AI segmentation locally
3.3.1 Installing Python 3.3.2 Installing PyTorch 3.3.3 Installing TotalSegmentator
4. Dissection Master
4.1 Changing layers 4.2 Scaling 4.3 Moving 4.4 Rotating 4.5 Annotations 4.6 Visibility controls
5. Anatomy Master
5.1 Scaling 5.2 Taking apart 5.3 Moving 5.4 Rotating 5.5 Cutting 5.6 Annotations 5.7 Visibility controls
6. RecordXR
6.1 User interface
6.1.1 Main control pad 6.1.2 RecordXR section 6.1.3 RecordXR panel
7. RecordXR Studio
Tutorials
1. Get records from Medicalholodeck 2. Open RecordXR Studio 3. Open a project 4. Add recordings 5. Zoom in/zoom out 6. Change the order 7. Trim 8. Set the metadata 9. Add an avatar 10. Saving the project 11. Export a .RXR file 12. Exit the platform 13. Open the recording
7.1 Editing tools
7.1.1 Preview window 7.1.2 Timeline toolbar 7.1.3 Timeline
7.2 Metadata section
7.2.1 Title 7.2.2 Avatar 7.2.3 Preview icons 7.2.4 Duration 7.2.5 Description
7.3 Project controls
7.3.1 Save project 7.3.2 Export RXR 7.3.3 Close
8. TeamXR
8.1 Creating a team 8.2 Joining a team 8.3 Adding data to the session
8.4 Session settings
8.4.1 Users in session 8.4.2 Session code 8.4.3 Disconnect 8.4.4 TeamXR settings 8.4.5 Open library
9. Remote Rendering
9.1 Accessing Remote Rendering 9.2 Using Remote Rendering

Tutorials

1

Activate licenses

Start free trial

Free trial

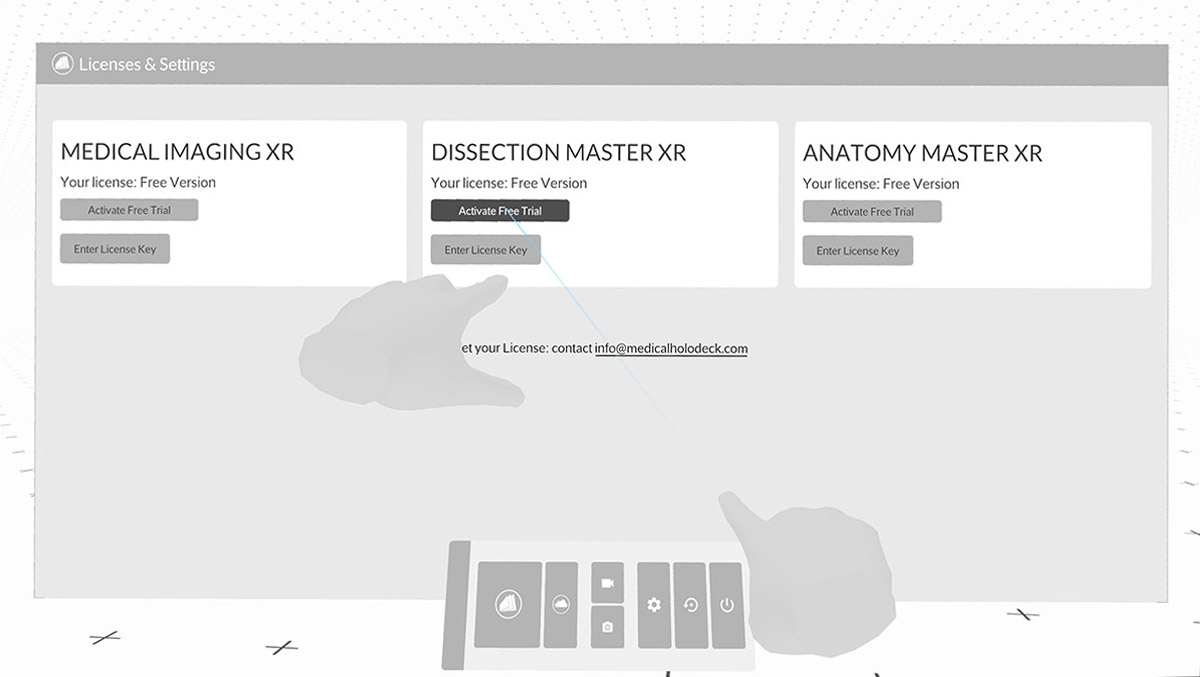

In VR, go to settings settings and click the 'Activate Free Trial' button.


Activating license keys on PC-VR systems

To activate the license keys, click the cogwheel icon to open the settings and navigate to the License tab. Select the Enter License Key button next to the application you want to activate. Copy the license key and paste it there from your clipboard. Confirm by clicking the Activate button. The license expiration date will be displayed.


Activating license keys on standalone

To activate your license key, first add your headset to Link. Choose the cogwheel icon from the Main Control pad to open the settings. Then go to the Licenses tab. Your code is displayed in the bottom-left corner. Visit medicalholodeck.com/link on your computer and enter the 6-digit access code in the window that appears. It will close and your headset will be listed as online.

Open the License Management tab and enter your license key for the selected application. Then click Activate License Key. Once activated, the license status will change to active and the expiration date will be displayed.

3

Capture screenshots and videos

Capture screenshots

Capture screenshots and videos from inside the app. A preview of the captured screenshot will be visible on your right hand. Videos will capture your VR view. Photos and videos are stored in HD format (1920x1080) on your desktop. When using the screenshot or video function for the first time after starting the app it will take a few seconds until the camera is ready. Capture screenshots by clicking the function button on your right controller.


Capture videos

Capture videos by activating the video function on the home menu UI. Stop recording by shooting with the laser on the button a second time.

4

How to add your device to Link

Add your standalone headset to Link to manage your files and licenses from your computer.

In the Medicalholodeck app, select the import function from the Medical Imaging section of the library. Choose the Cloud tab and find the 6-digit access code on the right side of the window.

Alternatively, choose the cogwheel icon from the Main Control pad to open the settings. Then go to the Licenses tab. Your code is displayed in the bottom-left corner.

Visit medicalholodeck.com/link on your computer and enter the 6-digit access code in the window that appears. It will close and your headset will be listed as online.

Click Link Device to add another device. Use the corresponding buttons to switch between their panels.

5

Uploading data from your computer to your headset

  1. Connect your device to Link. See here how to link your device.

  2. On the dashboard navigate to the upload section.

    Upload section

  3. Drop the file in the designated section or click choose directory to load from your computer.

    Load from computer

  4. To complete the process, continue in your headset.

  5. Select the data you wish to import or click on the select all button.

  6. Then click the import datasets button.

    Import datasets

6

Accessing files via Link

You can edit metadata for datasets, RXR recordings, presets, and transfer functions. You can also remove files from here.

  1. Connect your device to Link. See here how to link your device.

  2. On the dashboard navigate to the datasets.

    Datasets section

  3. You can edit the file feature in the text field named label. In case of datasets - name.

    Edit file feature

  4. To delete a file press the delete button on the right.

    Delete file
